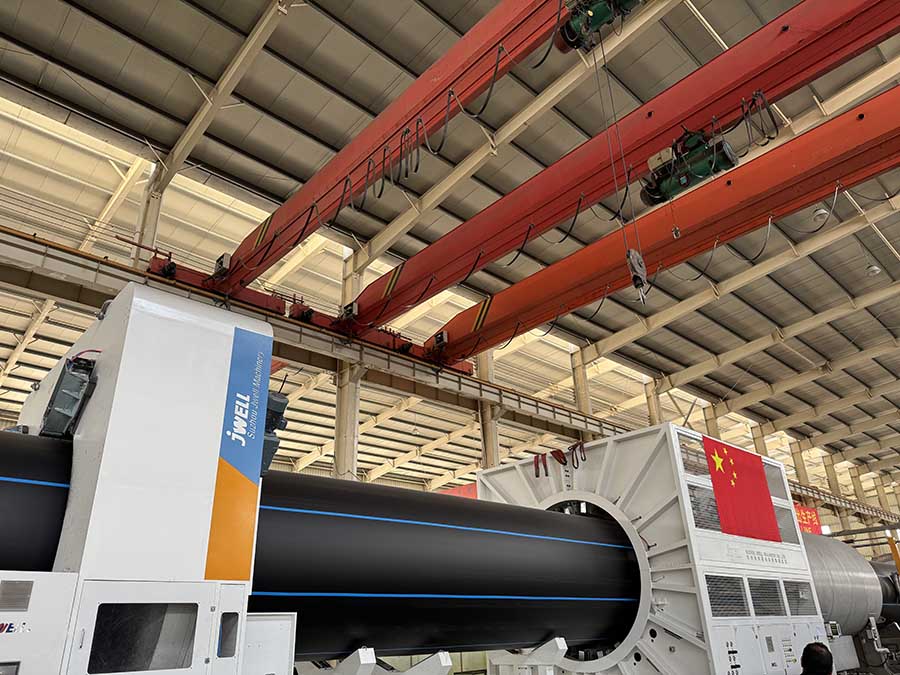

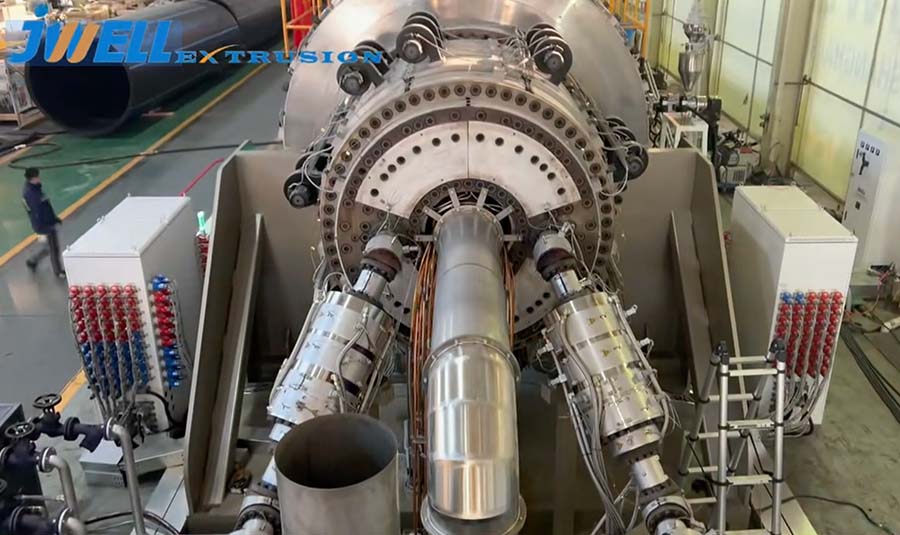

2700mm HDPE Pipe Extrusion Line Leader in Large-Diameter Pipes
The Jwell 2700 HDPE pipe production line has successfully passed final acceptance and has been smoothly commissioned at the UAE client’s factory.
This milestone not only demonstrates the stable performance of Jwell’s large-scale equipment, but also confirms that Jwell remains at the forefront of cutting-edge technology among global pipeline manufacturers.
For more detailed information, please feel free to contact us.
| Main technical parameter | ||||
| Line Type | Extruder Type | Pipe Range(mm) | Max.Speed(m/min) | Max.Capacity(kg/h) |
| MFH-F32 | MFH-60 | 8-32 | 50 | 180-360 |
| MFH-F63 | MFH-60/MFH-45 | 16-63 | 40 | 250-360 |
| MFH-60/MFH-45×2pcs | 16-63 | 40 | 250-360 | |
| MFH-F110 | MFH-60/MFH-45 | 20-110 | 30 | 300-440 |
| MFH-60/MFH-45x2pcs | 20-110 | 30 | 300-440 | |
| MFH-F160 | MFH-60/MFH-45 | 50-160 | 15 | 360-520 |
| MFH-60/MFH-45x2pcs | 50-160 | 15 | 360-520 | |
| MFH-F250 | MFH-75/MFH-45 | 75-250 | 8 | 450-640 |
| MFH-75/MFH-45x2pes | 75-250 | 8 | 450-640 | |
| MFH-F315 | MFH-75/MFH-45 | 110-315 | 6 | 520-740 |
| MFH-75/MFH-45x2pcs | 110-315 | 6 | 520-740 | |
| MFH-F450 | MFH-75/MFH-50 | 160-450 | 2.4 | 620-880 |
| MFH-75/MFH-45×2 pcs | 160-450 | 2.4 | 620-880 | |
| MFH-F500 | MFH-75/MFH-50 | 160-500 | 2.4 | 700-1000 |
| MFH-75/MFH-45×2 pcS | 160-500 | 2.4 | 700-1000 | |
| MFH-F630 | MFH-90/MFH-50 | 315-600 | 1.2 | 840-1200 |
| MFH-90D/MFH-50x2pcs | 315-600 | 1.2 | 840-1200 | |
| MFH-FB00 | MFH-90/MFH-60 | 400-800 | 1 | 980-1400 |
| MFH-90/MFH-50×2pcs | 400-800 | 1 | 980-1400 | |
| MFH-F1000 | MFH-90/MFH-75 | 500-1000 | 1 | 980-1400 |
| MFH-90/MFH-60×2 pcs | 500-1000 | 1 | 980-1400 | |
| MFH-F1200 | MFH-120/MFH-60 | 630-1200 | 0.8 | 1100-1600 |
| MFH-120/MFH-60x2 peS | 630-1200 | 0.8 | 1100-1600 | |
| MFH-F1600 | MFH-120/MFH-75 | 1000-1600 | 0.6 | 1250-1800 |
| MFH-120/MFH-60x2 pes | 1000-1600 | 0.6 | 1250-1800 | |
| MFH-F2000 | MFH-120/MFH-90 | 1200-2000 | 0.5 | 1300-2000 |
| MFH-120/MFH-75×2pcs | 1200-2000 | 0.5 | 1300-2000 | |
| MFH-F2700 | MFH-120/MFH-90×2pcs | 2200-2700 | 0.1 | 2400-3000 |
