PP Honeycomb Board Extrusion Line

Core Process: Continuous Extrusion Lamination

This production line utilizes an advanced single-step extrusion process to achieve single-pass formation of triple-layer composite honeycomb panels:

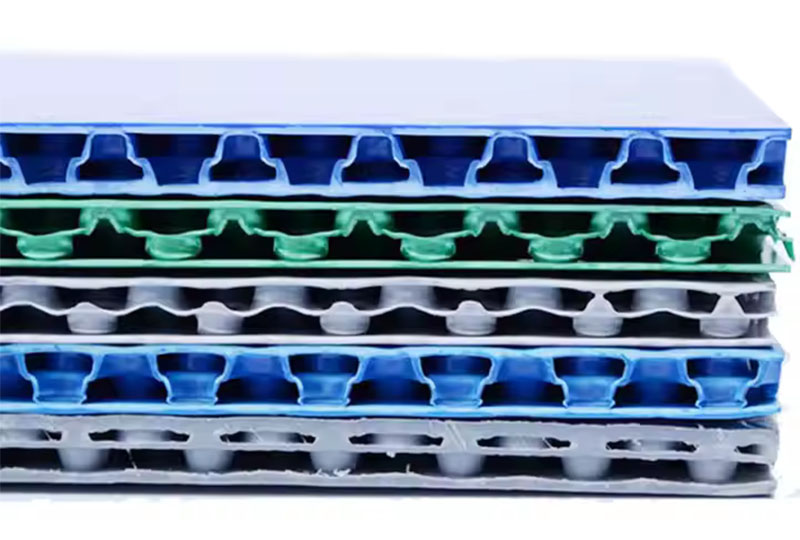

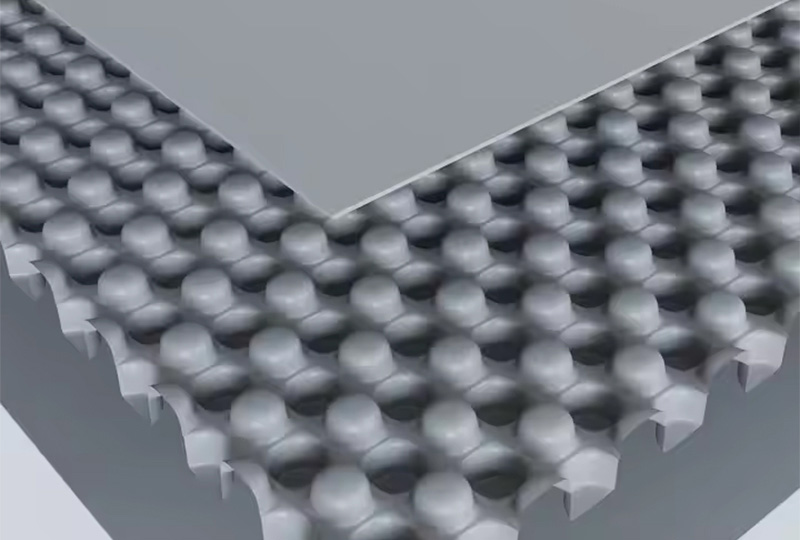

Triple-layer Structure:Top/bottom surface layers (smooth finish/coated) + central honeycomb core

Honeycomb Configuration:Supports customized single-layer and double-layer cellular structures

Transportation Solutions

● Rail Vehicles: High-speed train interior panels (sidewalls/ceilings) made on Jwell extrusion lines with fire-retardant grades

● Marine Engineering: Ship decks & cabin partitions (especially yachts), featuring Jwell’s marine-grade extrusion technology for saltwater resistance

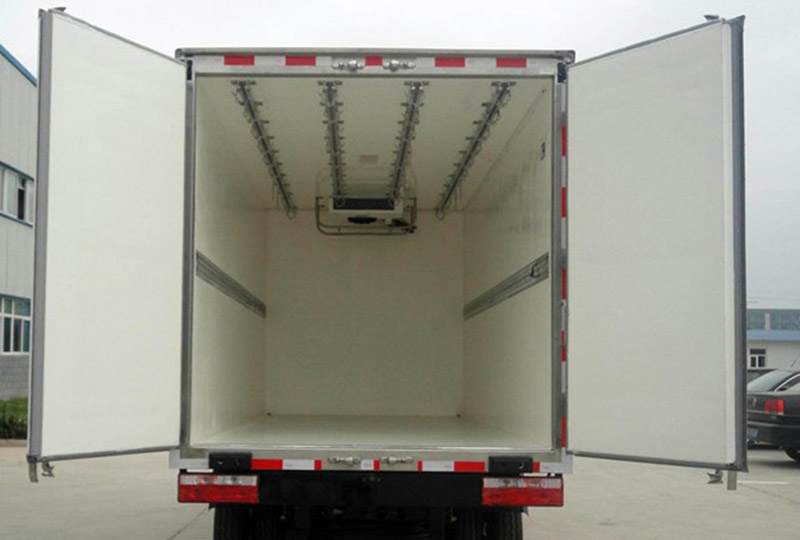

● Special Vehicles: Refrigerated van bodies with integrated thermal insulation from Jwell’s one-step co-extrusion process

Building & Construction

● Prefabricated Walls: Structural insulated panels (SIPs) produced at 22 m/min on Jwell lines, achieving U-value ≤0.8 W/m²K

● Medical Facilities: Antibacterial ceiling systems (ISO Class 5 compliant) with Jwell’s online lamination for seamless coating

● Temporary Structures: Hurricane-resistant mobile home panels (wind load ≥1.5 kPa) formed via Jwell’s high-precision dies

Industrial Protection

● Chemical Tanks: Corrosion-resistant liners (pH 2-12 tolerance) using Jwell’s PP compounding technology

● Machinery Guards: Impact-absorbing barriers (>50 kJ/m²) with adjustable cell density (10-50 kg/m³) via Jwell honeycomb formers

● Acoustic Barriers: Factory noise walls (STC 35dB) utilizing Jwell’s dampening-optimized extrusion

Sustainable Infrastructure

● Waterfront Systems: Dock floats & pontoons with 15-year service life – enabled by Jwell’s UV-stabilized extrusion

● Eco-Walkways: Forest trails replacing timber, produced with 30% recycled PP in Jwell machines

Core Equipment & Key Technological Advantages

Q: Can we visit your factory?

Sure. We located in No.118 Shangshang road Channgzhou Liyang city Jiangsu Province China, you can fly to ShanghaiPudong International Airport or Nanjing Lukou airport. We can pick you up in the Airport.

Q: How can we get the exact price of plastic extrusion machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.

Q: How about JWELL after-sale service?

The customer can send the engineer to our JWELL with training.

JWELL supplies the complete technical support documents and the relative drawings of the electric components written in Chinese and English.

JWELL send enough technicians to the customer’s company for installation and testing the lines.

Q: What is the lead time?

The machine is customized , it takes about60-90 days after deposit, It needs to be determined based on the actual technical configuration.

Q: What is the warranty period for JWELL machine?

The guarantee period is one years and service is available lifelong.

Q: Do you provide custom machines?

Most of our machines are customized. our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We send experienced technicians to customer's country for guiding the installation and commission the machine,also train the customer's employees.

Q: What's the advantage of JWELL?

We provide customers with turnkey projects. Including plant design plastic machine and mold installation, debugging,also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
