PVC Edge Banding Extrusion Line
| Place of Origin: | China |
| Brand Name: | JWELL |
| Certification: | CE ISO TUV UL,QS,GMP |
| Minimum Order Quantity: | ≥1 |
| Price: | To be negotiated |
| Delivery Time: | 90 days |
| Payment Terms: | T/T,L/C |
| Warranty: | One year |
| International Commercial Terms: | FOB,CIF,CFR,EXW |
Product Description
The extruder adopts special alloy screw with high-precision hard chromium plating mirror treatment, variable frequency speed regulation is adopted for motor, high precision intelligent temperature control meter with temperature control accuracy of ± 1 degree. The special hard tooth surface high thrust reducer for extruder has good plasticizing effect, stable operation and low failure rate.

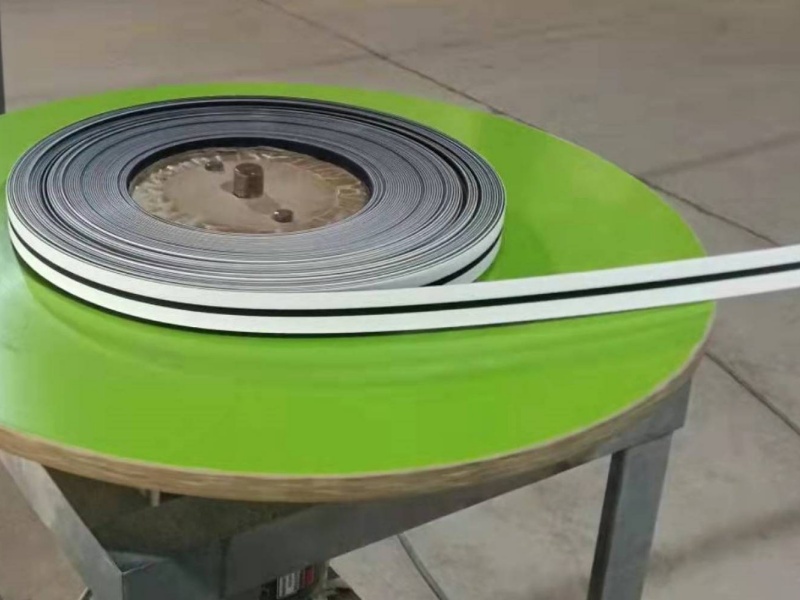

The edge banding mainly plays the role of curing, beautifying and decorating the furniture section, and also plays the role of preventing harmful gas from overflowing and water from entering the plate.
The product has the characteristics of good edge banding effect, convenience and high utilization rate. It is suitable for mechanical edge sealing of solid wood composite furniture, solid wood composite doors and wood plastic door components.
Applications
It is widely used in furniture, building materials, interior decoration, soft film ceiling and other industries.
Specifications
| Extruder | JWS45/25 | JWS50/25 | JWS65/25 | SJZ65/132 | SJZ80/156 |
| Motor Power(kw) | 11 | 15 | 22 | 37 | 55 |
| Products width(mm) | 40 | 50 | 100 | 600 | 1000 |
| Products thickness(mm) | 0.4-1 | 0.4-1 | 0.4-3 | 0.2-3 | 0.2-3 |
| Output(kg/h) | 25 | 35 | 50 | 150-250 | 350 |

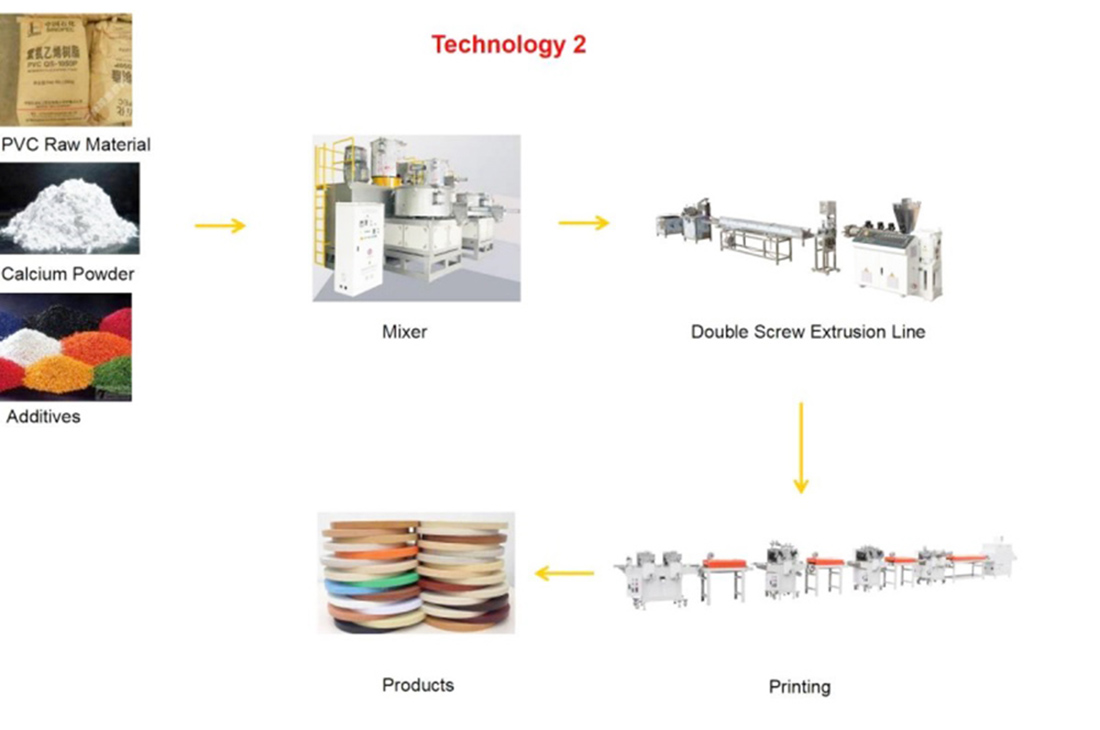

Product Processing
Packing & Delivery
FAQ
Q: Is the extrusion line fully automated with PLC control?
A: Yes, it features a PLC-based control system with a touchscreen HMI for precise adjustments of temperature, speed, and thickness.
Q: Can it process recycled PVC or alternative materials like ABS/PP?
A: Yes, the line is compatible with PVC (new/recycled), ABS, PP, and PETG, with optional screw designs for optimal melting.
Q: What type of cooling system does it use?
A: It combines vacuum calibration, water bath cooling, and air knives for rapid, warp-free solidification.
Q: How stable is the final product’s dimensional accuracy?
A: Tolerance is maintained within ±0.1mm due to precision calibration and servo-driven pullers.
Q: Can the line apply woodgrain patterns or high-gloss finishes?
A: Yes, optional embossing rollers, printing units, or UV coating systems can be integrated for decorative finishes.
Q: Does it eliminate surface defects like bubbles or streaks?
A: The degassing extruder and melt filtration ensure smooth, defect-free output.
Q: What is the warranty period, and does it include training?
A: Standard warranty is 1–2 years, with free remote guidance and on-site training (optional).
Q: How quickly can spare parts be delivered?
A: JWELL maintains a global spare parts network, with critical components shipped within 3–7 days.
