Polyester industrial waste fibers recycling pelletizing machine

Compactor plastic waste granulation system

Compaction chamber plastic recycling device

Waste Fiber Recycling Pelletizing Line

Place of Origin:	China
Brand Name:	JWELL
Certification:	CE ISO TUV UL,QS,GMP
Minimum Order Quantity:	≥1
Price:	To be negotiated
Delivery Time:	75 days
Payment Terms:	T/T,L/C
Warranty:	One year
International Commercial Terms:	FOB,CIF,CFR,EXW

Inquiry

Product Description

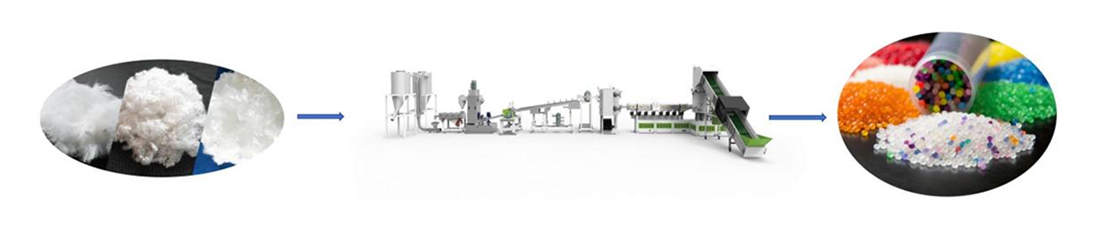

The pre-cutted materials are transported into the compactor through the belt conveyor. The materials are cut, mixed and compacted in the compactor to effectively heat and dry the materials. The knife gate valve design on the compactor automatically controls the screw feeding speed to ensure stable screw operation. Equipped with a high-precision melt filtration system to improve the purity of materials. The entire system can improve particle color and viscosity drop issues. High degree of automation, saving labor.

Applications

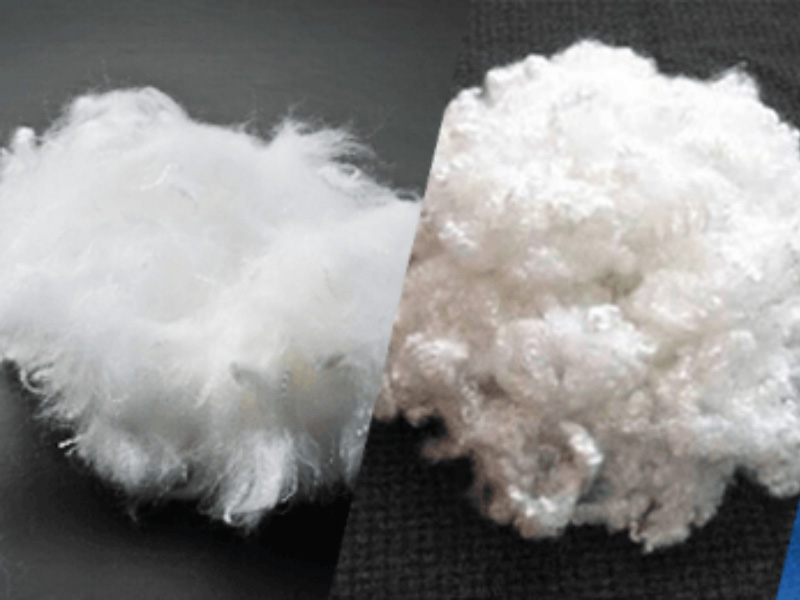

1. Waste white and colored polyester filaments recycling

2. Waste colored polyester filaments recycling

3. Polyester fabrics recycling

4. Chemical fiber filaments recycling

5. PET waste filaments recycling

6. PBT waste filament recycling

7. PTT waste filaments recycling

8. PP waste filaments recycling

9. PA waste filaments recycling

10. Waste blocks, non-woven fabrics recycling

11. Polyester industrial waste fibers recycling pelletizing machine

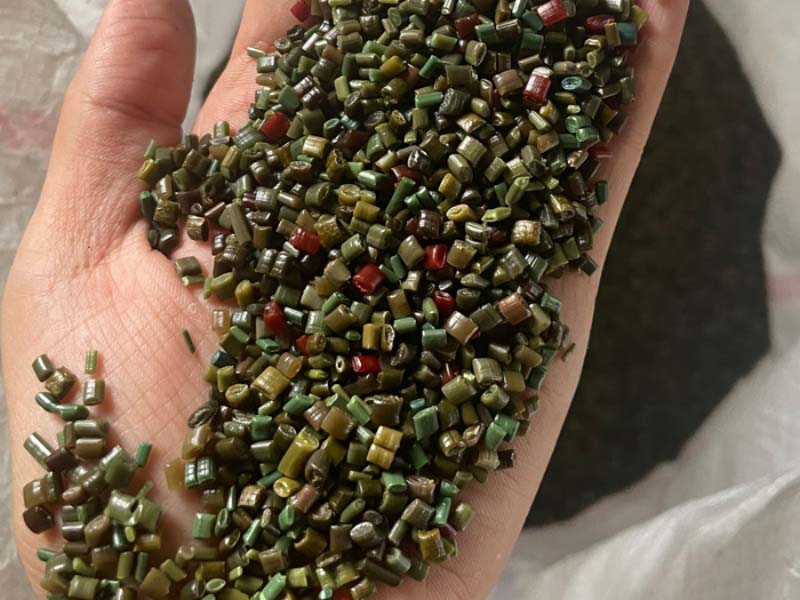

waste PET chemical fiber pelletizing line

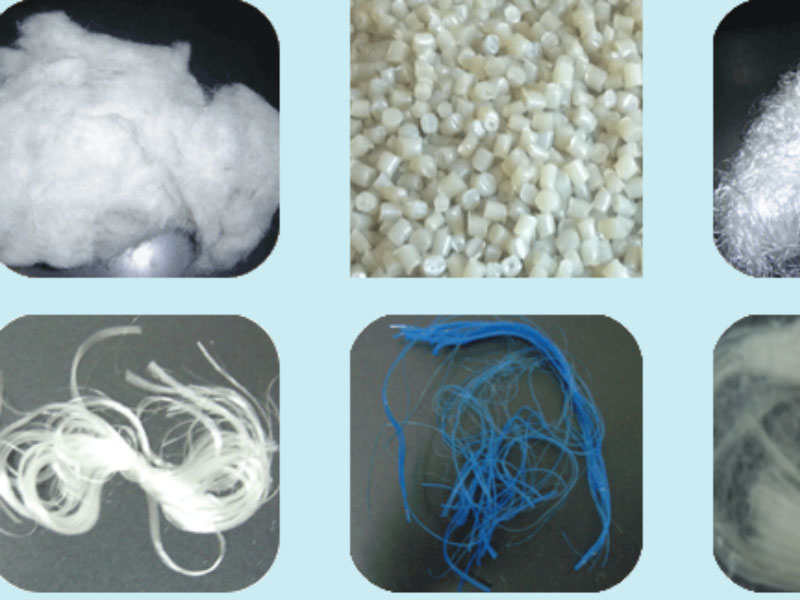

strands cutting pelletizing line

waster PA plastic recycling line

Specifications

Model	Screw diameter(mm)	L/D	Screw speed(rpm)	Main motor power(kw)	Output(kg/h)
JWL90	90	32-38	20-150	75-90	200-350
JWL120	120	32-38	20-120	110-132	300-500
JWL150	150	32-38	20-100	160-200	450-700
JWL180	180	32-38	20-100	250-315	800-1200
